DN6/DN8/DN15/DN25 male+male+Female Threaded 3 Way Tee T Pipe Fitting 1/4" 1/2" 3/4" 1" 1-1/4" BSP Threaded 304 Stainless Steel

Feature:

Anti-corrosion, pollution-free,glossy,high hardness,depth of thread, strong and durable

Suitable for air, water, Gas, fuel , Oil.

Easy and convenient to install.

Specification:

Product Name :      304 Stainless Pipe Fittings

Material :                304 stainless steel

Thread(BSP):             1/8 1/4 3/8 1/2 3/4 G1 G1.2 G1.5 G2 G2.5 G3 G4 (other size please contact us)

Rough process:     Casting/Cold Heading

Processing technology:   CNC precision machining

Suitable for media:          Water, oil, gas, and certain corrosive liquids (W/O/G)

Thread type:                    ZG/R/BSPT (tapered pipe thread)

Under pressure:              20kg (150LB)

Work pressure:               1Mpa 143 PSI

Industrial pressure:         1/6Mpa

Working temperature:     -20 °~450 °

1 x 304 Stainless Pipe Fitting

Size:

DN6=1/8"?9.5mm?0.374 inch

DN8=1/4"?12.5mm?0.4724 inch

DN10=3/8"?16mm?0.6299 inch

DN15=1/2"?20mm?0.7874 inch

DN20=3/4"?26mm?1.0236 inch

DN25=1"?32mm?1.2398 inch

DN32=1-1/4"?G1.2?41.5mm?1.6338 inch

DN40=1-1/2"?G1.5?47.5mm?1.8503 inch

DN50=2"?59.6mm?2.346 inch

DN65=2-1/2"?G2.5?75mm?2.952 inch

DN80=3"?85.5mm?3.444 inch

DN100=4"?111mm?4.37 inch

Note:

Please allow minor error due to manual measurement. Thank you!

Due to the difference between different monitors, the picture may not reflect the actual color of the item.

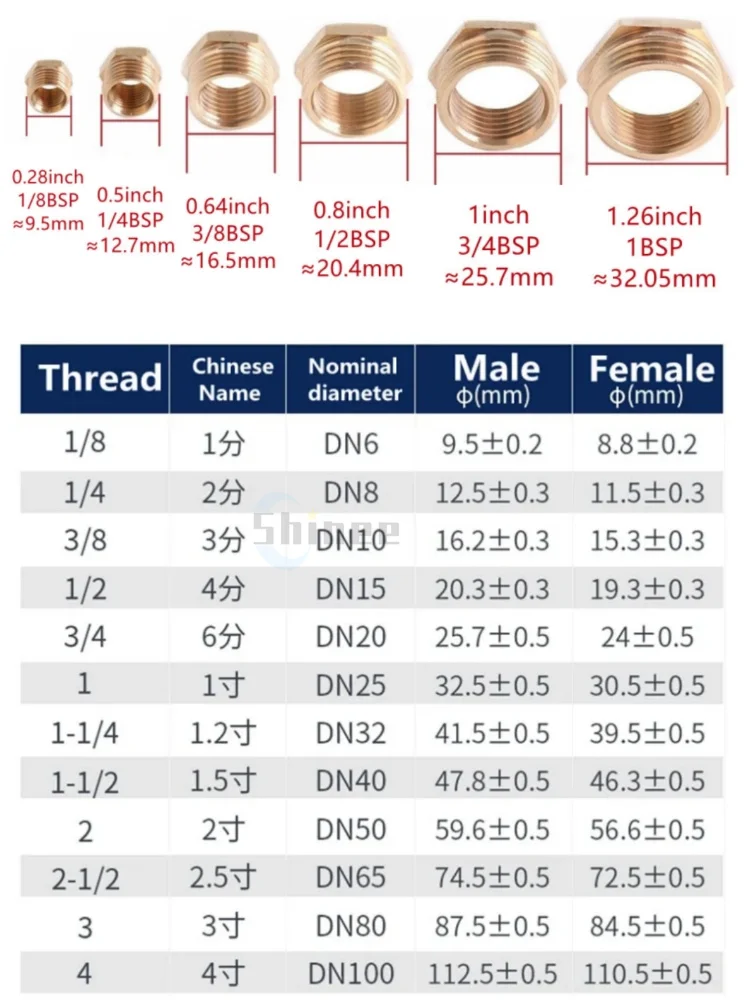

Please note that BSP sizes are not related to the physical thread diameter of the fitting. Please see the diagram below if you would like to identify the size of your fitting.

Why is stainless steel magnetic

Answer:
304 stainless steel is Austenitic stainless steel,Part of austenite is
converted to martensite during forging and cold working,Martensite is
magnetic,So 304 stainless steel is generally non-magnetic or weak
magnetic,At the beginning, the raw material 304 bars from the steel mill
were all with normal lattice inside.So the 304 bar itself is
non-magnetic at first,But because the stainless steel bar is melted by
high temperature,Later after high temperature forging, cutting and
processing,It will distort and change the crystal lattice inside 304
material, resulting in weak magnetism.

How to identify the real 304 stainless steel

Taper thread, will be more and more tight when rotating, tight with sealing,
need to use raw material belt and other sealing materials, for high
pressure pipeline

Cylindrical thread, no taper, more relaxed when rotating, the connection
 is not sealed, need to use sealing gasket to complete tight, for low
pressure pipeline

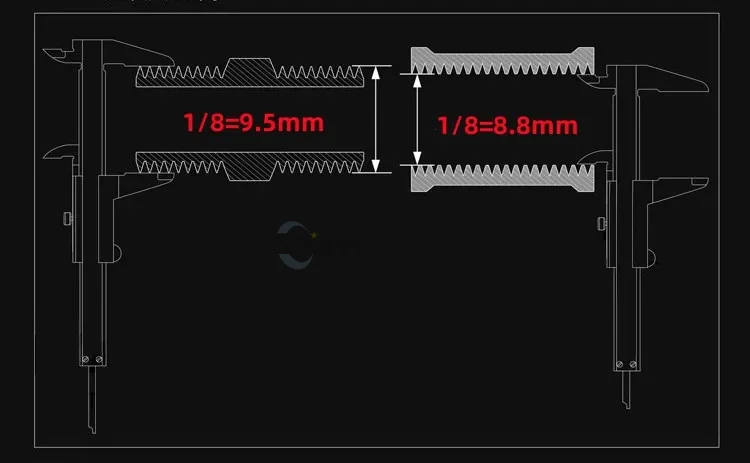

How to measure thread correctly

Answer:
1. Support the use of 304 stainless steel potion detection

2. Support chemical composition analysis spectrometer

Why can't the threads connect

1. Different thread standards

Usually thread standards are NPT,BSP, Metric.Some threads are
non-standard and the standards of each thread cannot be used with each
other

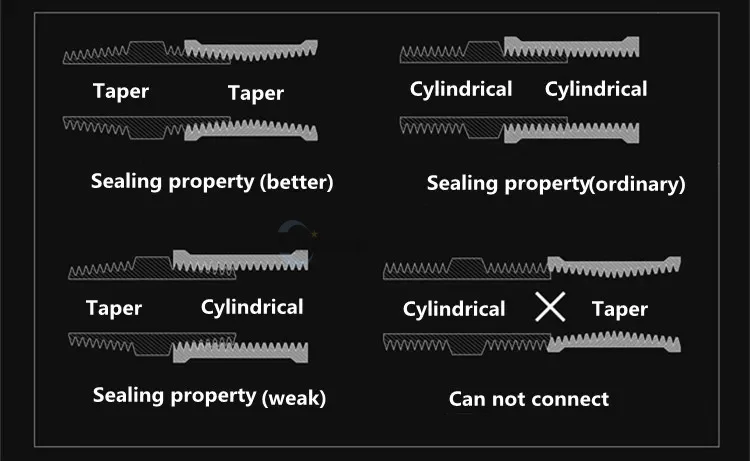

2.Thread profile different

Usually Taper and cylindrical threads,

as shown ,the fourth one fails to combine
